Ship from UK Conversion Kit Cycling Motor 36V 48V 26 27 28 29 inch Electric Bike Kit Free Tax

SKU
36V48VUK-1
In stock
$199.00
-
+
Overview

only ship to Unite Kingdom for this link

Ship from UK Electric Bicycle E-bike Motor 36V 48V 26 27.5 28 29 inch 700C E Bike Motor LCD Free Tax

Packing List


1* Front or Rear motor wheel

1 * DC Controller

1 * Controller Bag

1 Pair * Power cut-off Brake lever

1 * SW900 Display

1 * 8 Magnet Pedal Assistant Sensor

1 * Twist Throttle


Product Details

1. Motor wheel
1).48V motor wheel
a. Full No-load Speed:
48V 500W  about 40-50km/h

48V 1000W about 45-55km/h

48V 1500W about 50-60km/h

b. Rim: Double-wall Aluminium Alloy Rim /25mm inner width
c. Hub Motor: 48V Brushless Non-gear Hub Motor
d.Rear wheel Bottom bracket: 135mm-142mm
Front dropout 100mm
e.Rotating speed
48V 500W/1000W:470RMP
48V 1500W:540RMP
f.torque
48V 1000W: 30-40NM
48V 1500W: 35-45NM
2).36V motor wheel

a. Full No-Load Speed: about 20-35km/hour

b. Rim: Double-wall Aluminium Alloy Rim/ 25mm inner width

c. Hub Motor: 36V  Brushless geared hub motor

d. Wheel dropout :Front 100mm/ Rear 135mm-142mm

e.Rotating speed

36V 250W/350W: 320 RPM

36V 500W: 350 RPM

f.torque: 35-45NM

Battery 48V 18Ah

EBB48V18AHL3H

Nominal Voltage: 48V

Nominal Capacity: 18Ah
Composed Type: 13Series 4Paralles 13S4P
Cells: 21700 4500mah Power Cells
BMS: 40 Amp continuous 100±10Amp maximum
Fit Motor Power : 48V 500W 750W 1000W 1500W
Charge Current: 3A
Discharge Temperature: -20 to 65°C
Charge Temperature: 0 to 45°C

Charge Cut-off Voltage: 54.6V

Discharge Cut-off Voltage: 36.4-39V

Battery Net Weight: <4.5kg

Cycle life: ≥80% capacity after 800 cycles.

Charge Time: 8-9 Hours



2. Controller

CSC 6 mosfet controller
Fit for: 36V 250W/350W/500W motor wheel ,SW900 Display
Rated current: 15A ,Max current: 30±1A
Size: 100*64*32mm

CSC 12 mosfet controller
Fit for: 48V 1000W motor wheel,SW900 Display
Rated current: 22A , Max current: 44±1A
Size: 149*83.3*42mm

CSC 15 mosfet controller
Fit for: 48V 1500W motor wheel ,SW900 Display
Rated current: 35A , Max current: 70±1A
Size: 118.2*82.33*41mm




1). Controller Bag or box,

It may be different in look, if you mind it, please contact us before you buy it.


2. SW900 Display

Functions
2.1 LCD Display
Speed indicator, PAS grades indicator, Battery indicator, Error indicator, Single Trip Distance and
Total Distance, Headlight indicator.
2.2 Parameters Setting
Power on/off, Headlight on/off, 6KM/H Cruise control, Wheel size, Max speed setting,
Auto stand-by and sleep mode setting, Background luminance setting, Working voltage setting

3. PAS sensor- 8 Magnet

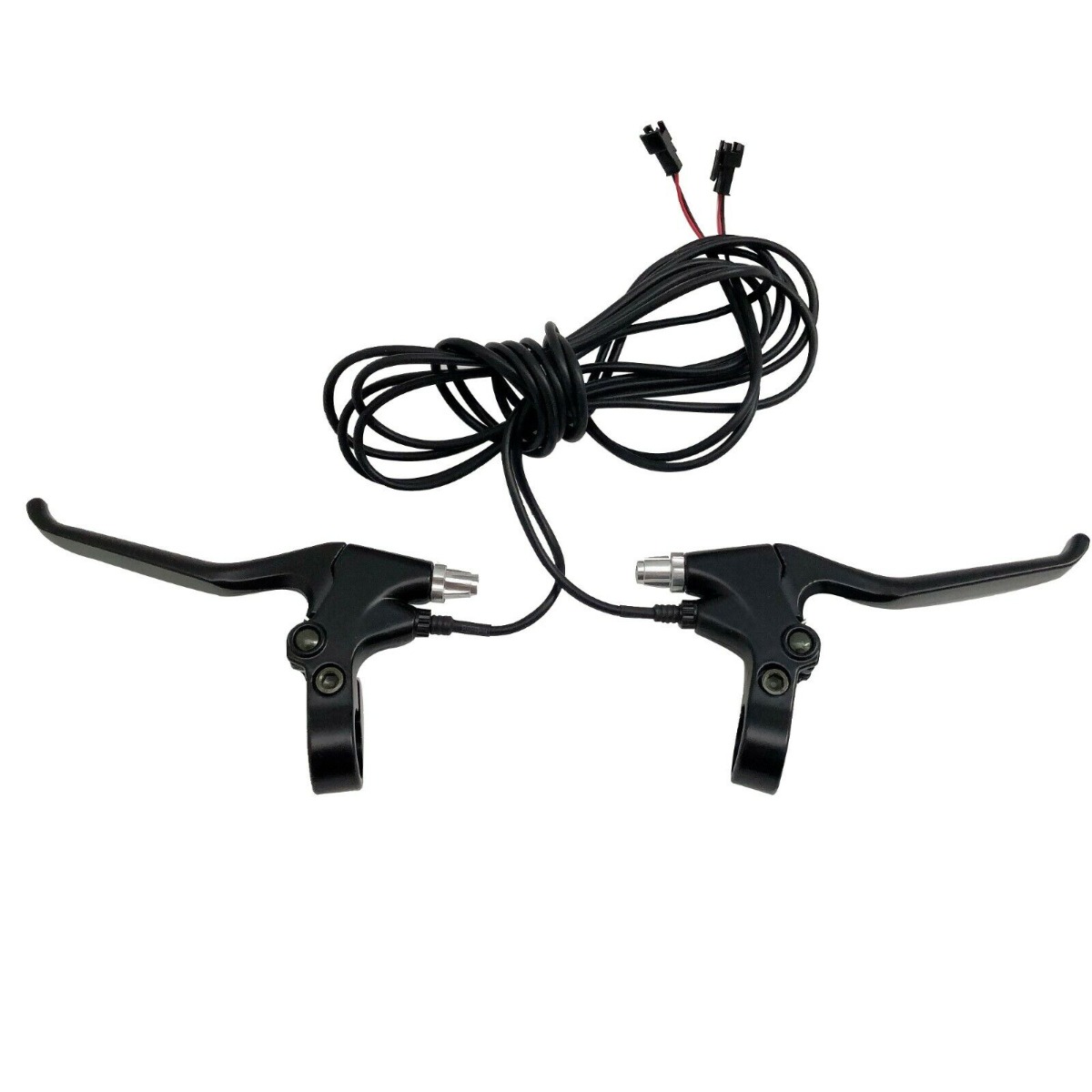

5. Brake Lever


6. Throttles

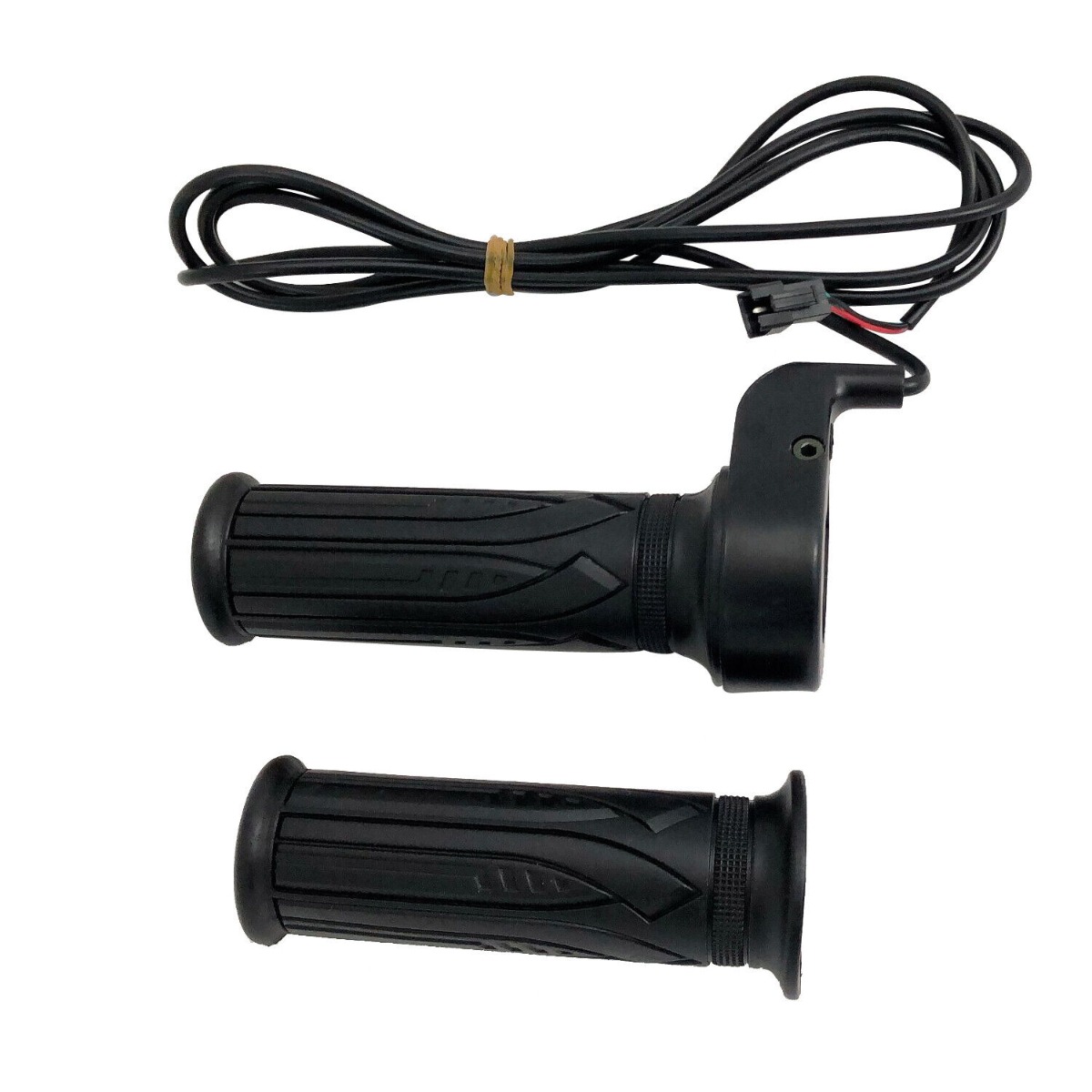

Twist Throttle

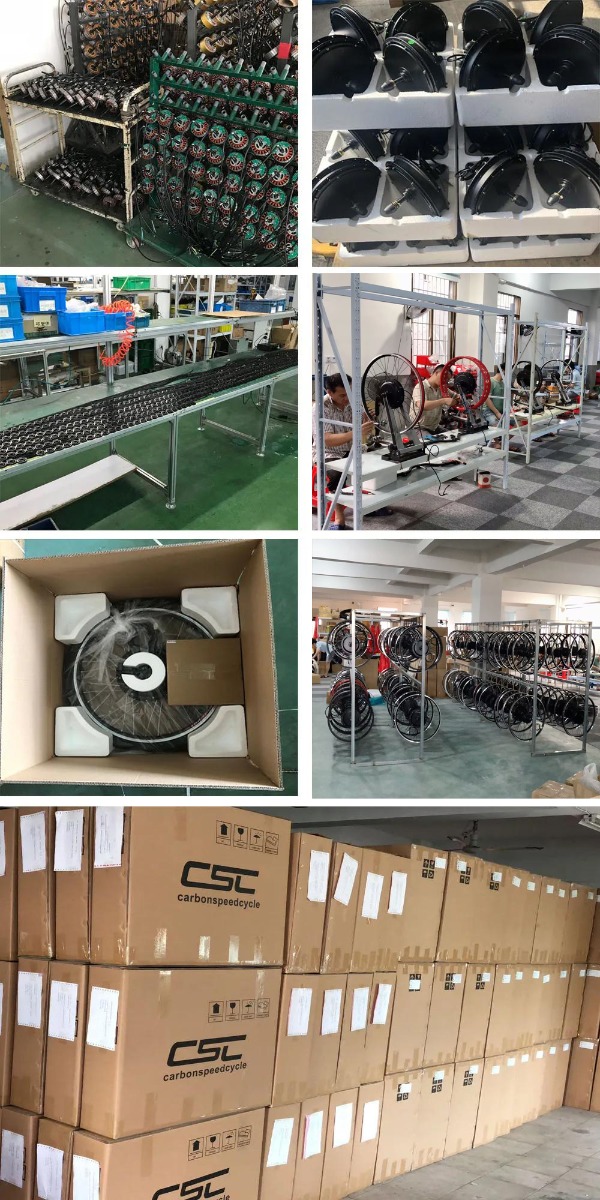

Factory and Warehouse
